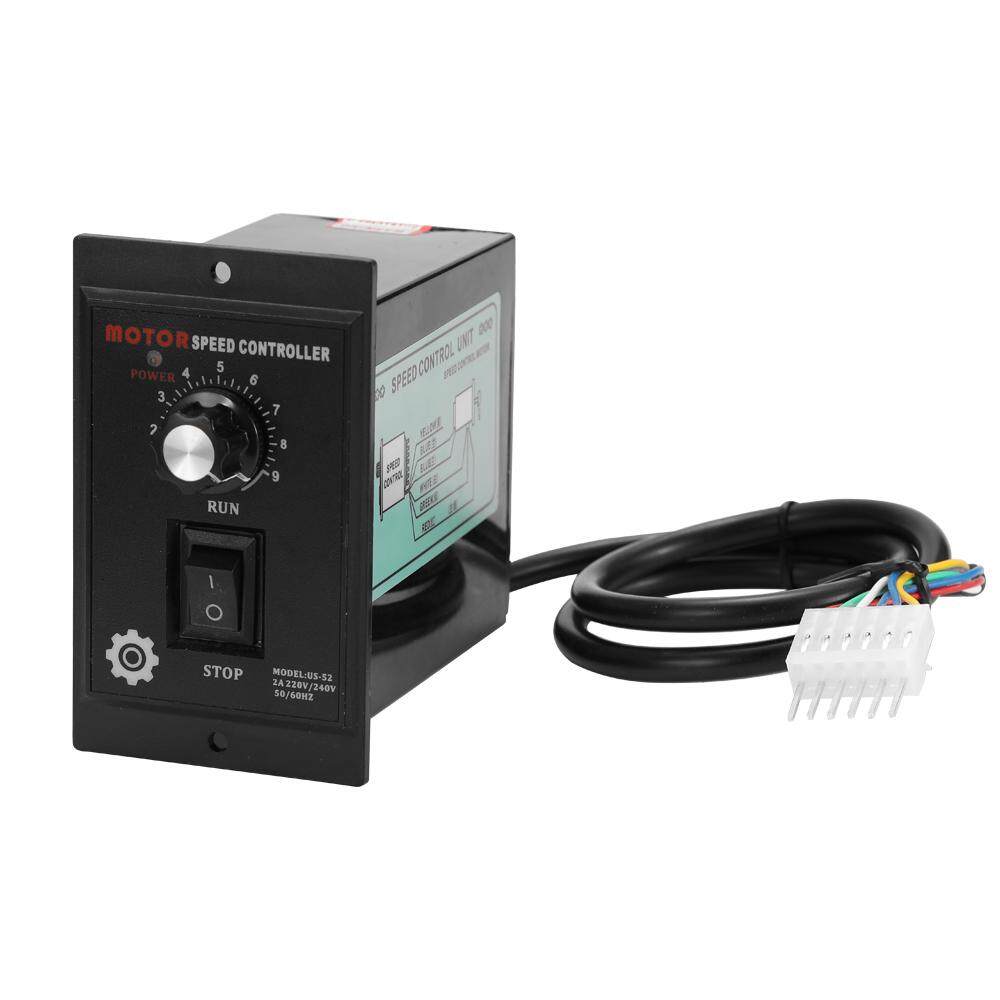

Printing Instrumentation Medical Equipment,etc Food Electronics Motor Speed Control AC 220V,400W 90-1400r/min 90-1700r/min Speed Controller,Pinpoint Regulator For Packaging

Motor Speed Control AC 220V,400W 90-1400r/min 90-1700r/min Speed Controller,Pinpoint Regulator For Packaging, Printing, Food, Electronics, Instrumentation, Medical Equipment,etc: Business, Industry & Science. Motor Speed Control AC 220V,400W 90-1400r/min 90-1700r/min Speed Controller,Pinpoint Regulator For Packaging, Printing, Food, Electronics, Instrumentation, Medical Equipment,etc: Business, Industry & Science. This motor speed controller is suitable for AC220V 50/60HZ motor. 。 Speed regulation range is 90-1400r/min 50HZ, 90-1700r/min 60HZ 。 Suitable for packaging, printing, food, electronics, instrumentation, medical equipment, clothing industry production line for speed control drive devices 。 The controller uses high quality electronic circuit and integrated components for durability. 。 It has small size, high precision, wide speed controlling range, and long service life. 。 。 Specifications: Power supply: AC220V 50/60hz 。 Rated power: 00W 。 Environment  temperature: - 10 ~ + 50℃; 。 Relative humidity:/<90%; 。 Speed regulation range: 90-100r/min 50HZ, 90-1700r/min 60HZ 。 Weight: 295g 。   。 Wiring method: 。 Black wire is the motor main wire, red and white are the capacitor auxiliary wires, and 2 blue wires are the speed control feedback wires, the green wire is the ground wire. 。   。 Package includes: 。 1 x Speed Controller 。 。 。 Method of use: 。 1. Turn off the power, connect it according to the wiring diagram and make sure the connection is correct. 。 2. Fix the controller well and set the speed to the lowest "0", so as to avoid sudden large current and permanent damage when starting the power supply; 。 3. Then turn on the power and adjust the speed knob to the desired position. Please turn off the power when not needed; 。 . The governor is connected to the motor. If the torque or speed is found to be inconsistent with the requirements, please adjust the fine-tuning potentiometer on the side of the product 。 5. To change the running direction of the motor, simply replace the jumper lines of "CCW" and "CW" on the back of the controller. 。 6. Select COM and CW short connection, then the motor will rotate clockwise. 。 7. Select COM and CCW short connection, then the motor do counterclockwise rotation. 。  (when changing direction, do not change the direction until the motor stops running completely.) 。 。 。 。
