Low Pulse Trigger Board Mini Flip-Flop Latch Relay Module Bistable Self-locking Switch 6-24V for Household Appliance

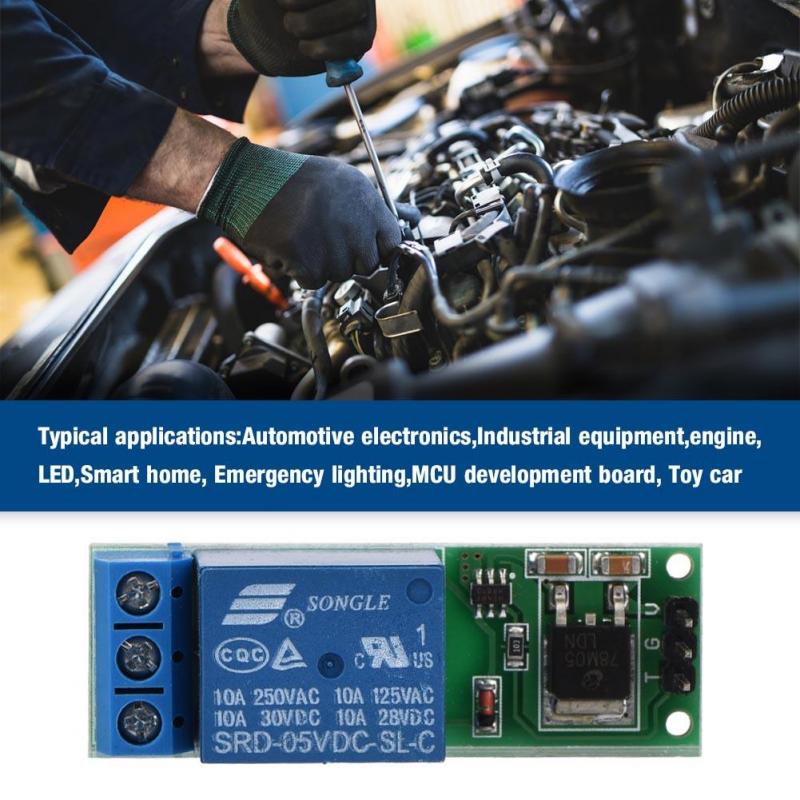

Low Pulse Trigger Board Mini Flip-Flop Latch Relay Module Bistable Self-locking Switch 6-24V for Household Appliance: Business, Industry & Science. Low Pulse Trigger Board Mini Flip-Flop Latch Relay Module Bistable Self-locking Switch 6-24V for Household Appliance: Business, Industry & Science. ▲Quality Guarantee - 100% brand new and high quality. 。 ▲Better to Use - The low pulse trigger board adopts of high quality electronic components, and precision process, ensure for the durability. 。 ▲Self Locking Design - This is a bistable (self-locking) relay module that triggers once the relay pulls (and holds); Trigger again, relay release (and hold). 。 ▲Typical Applications - automotive electronics,industrial equipment,engine, LED,smart home, emergency lighting,MCU development board, toy car. 。 ▲How to Use - By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on. 。 Specification: 。 Working voltage: DC 6-24v 。 Operating current: 60-70mA 。 Standby current: UA 。 Load current: AC 250V / 0A, DC 30V / 0A 。 Trigger mode: low pulse trigger 。 Weight: Approx.5g/0.5oz 。 。 。 Module interface: 。 . VCC: positive power supply (VCC) 。 2. GND: negative power supply (GND) 。 3. T : Low pulse trigger 。 Relay outputs: 。 . NO: normally open relay interface 。 2. COM: Common Interface Relays 。 3. NC: normally closed relay interface 。   。 Package list: 。 x Low Pulse Trigger Board 。 。 。 。
